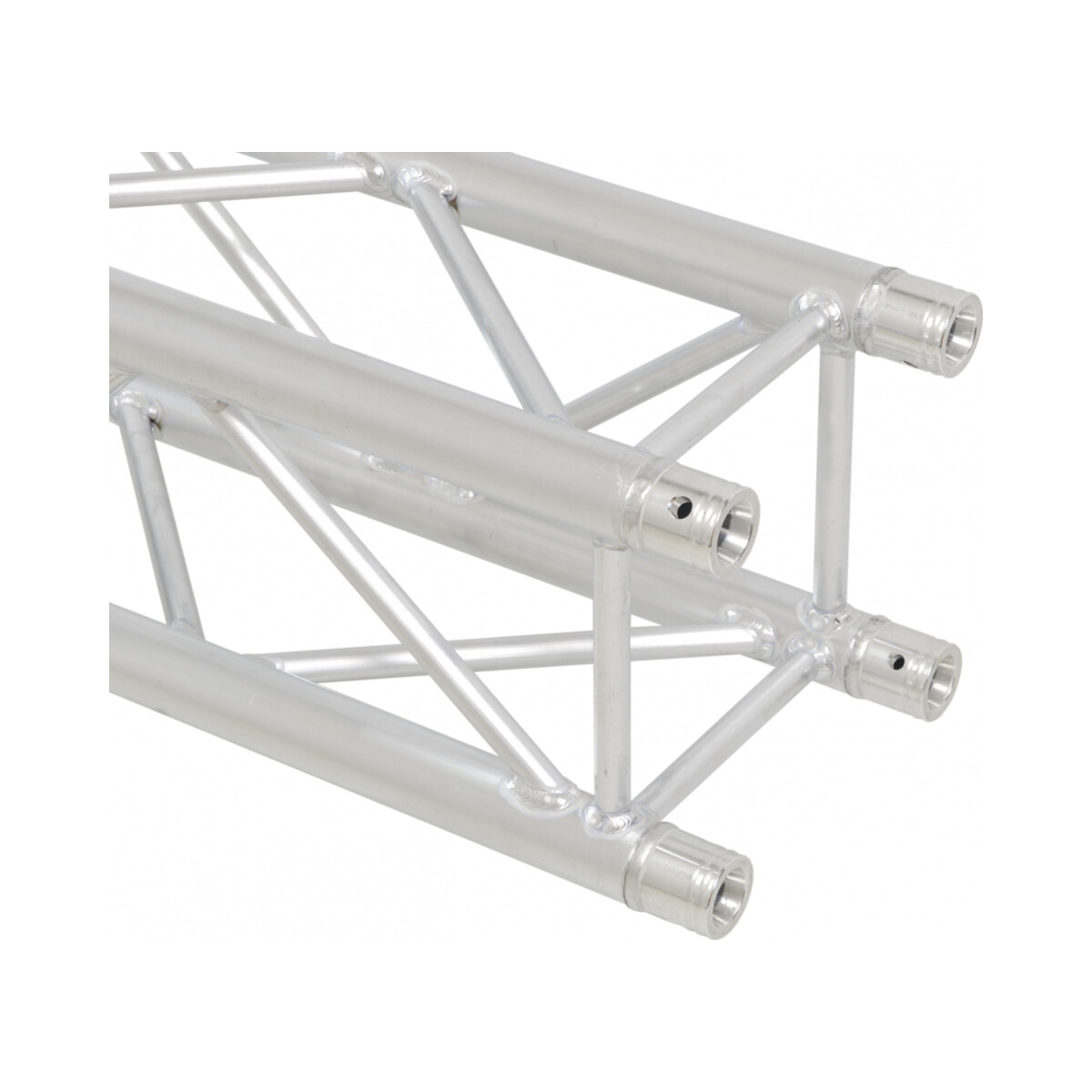

The DuraTruss DT34/2-200 is a 2-metre four-point aluminium truss section for professional event, exhibition and production structures. It forms part of the DT34/2 system and connects to compatible straight sections, corners and accessories using DuraTruss conical connectors, bolts and locking pins.
Typical uses:
- Lighting truss structures
- Exhibition and trade-show builds
- Scenic and branded event structures
- Ground-supported production systems
- Temporary AV installations
Key features:
- 2-metre four-point truss section
- 290 × 290 mm square cross-section
- 50 × 2 mm main tubes
- 20 × 2 mm braces
- EN-AW 6082 T6 aluminium alloy
- Conical connector system for fast assembly
- Compatible with the DuraTruss DT34/2 range
Technical specifications:
- Length: 2,000 mm excluding connector
- Width: 290 mm
- Height: 290 mm
- Weight: 10.8 kg
- Main tube: 50 × 2 mm
- Bracing: 20 × 2 mm
- Alloy: EN-AW 6082 T6
- Connection: Conical connectors with bolts and locking pins
What’s included:
1 × DuraTruss DT34/2-200 truss section
Compatible connector set as specified for the hire
Important:
Truss systems must be designed, assembled and loaded appropriately for the intended application. Rigging, structural calculations and ballast requirements are reviewed separately where required.
