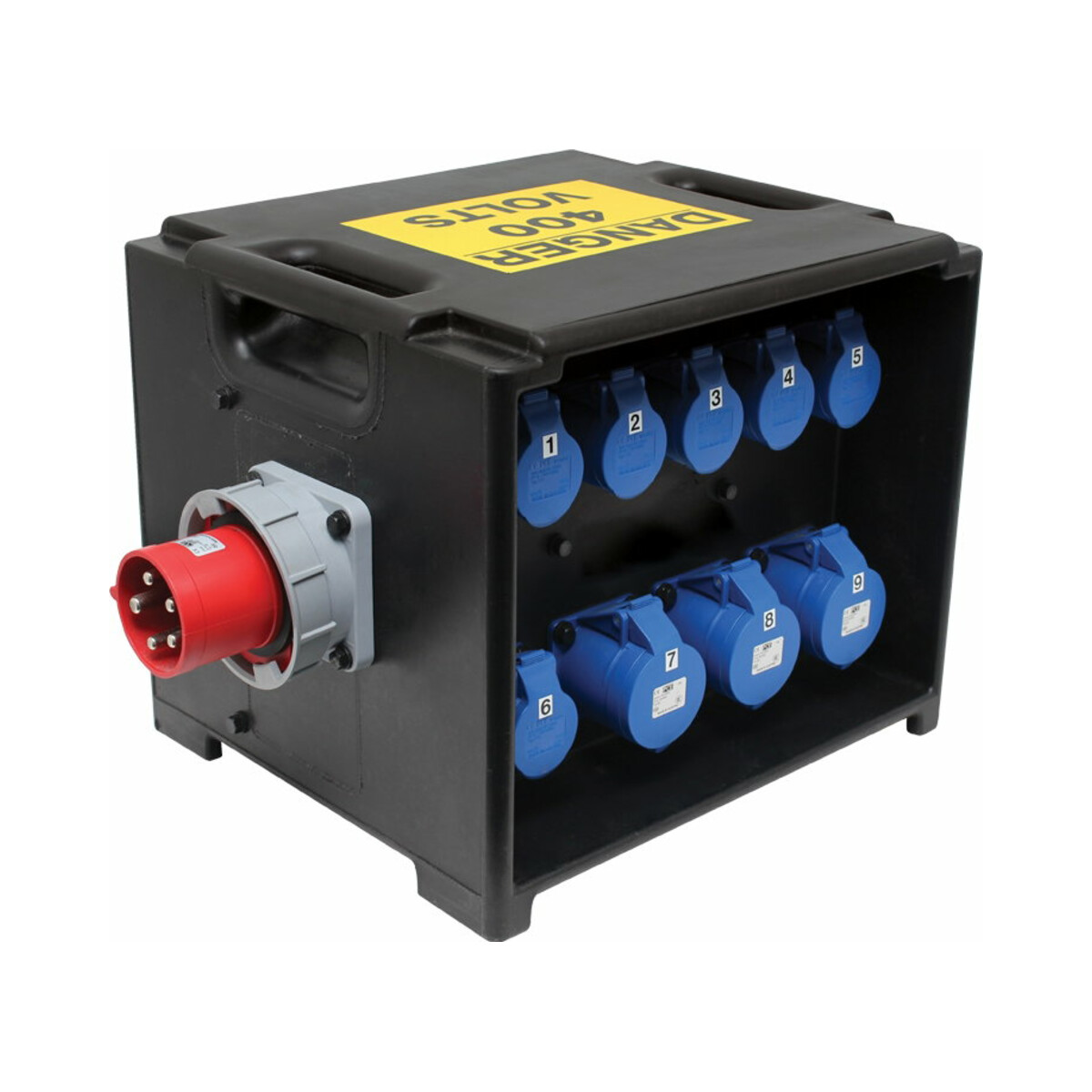

The eLumen8 MERZ 63A 3-phase RCBO distribution box is a robust event-power distro built in a shock-resistant thermoplastic enclosure with an IP44 splash-resistant rating.
A 63A 415V 5-pin three-phase input feeds three 32A single-phase outputs and six 16A single-phase outputs. Each output is individually protected by a C-type dual-pole RCBO, making the unit suitable for professional event, stage and temporary power distribution.
Connections:
- Input: 1 × 63A 415V 5-pin 3P+N+E IP44 chassis plug
- Outputs: 3 × 32A 220–250V 2P+E sockets
- Outputs: 6 × 16A 220–250V 2P+E sockets
- Each output protected by a C-type dual-pole RCBO
Technical specifications:
- Enclosure: shock-resistant thermoplastic
- Ingress protection: IP44
- Dimensions: 345 × 520 × 350mm
- Weight: 11.0kg
Manufacturer stock code: CONN083
