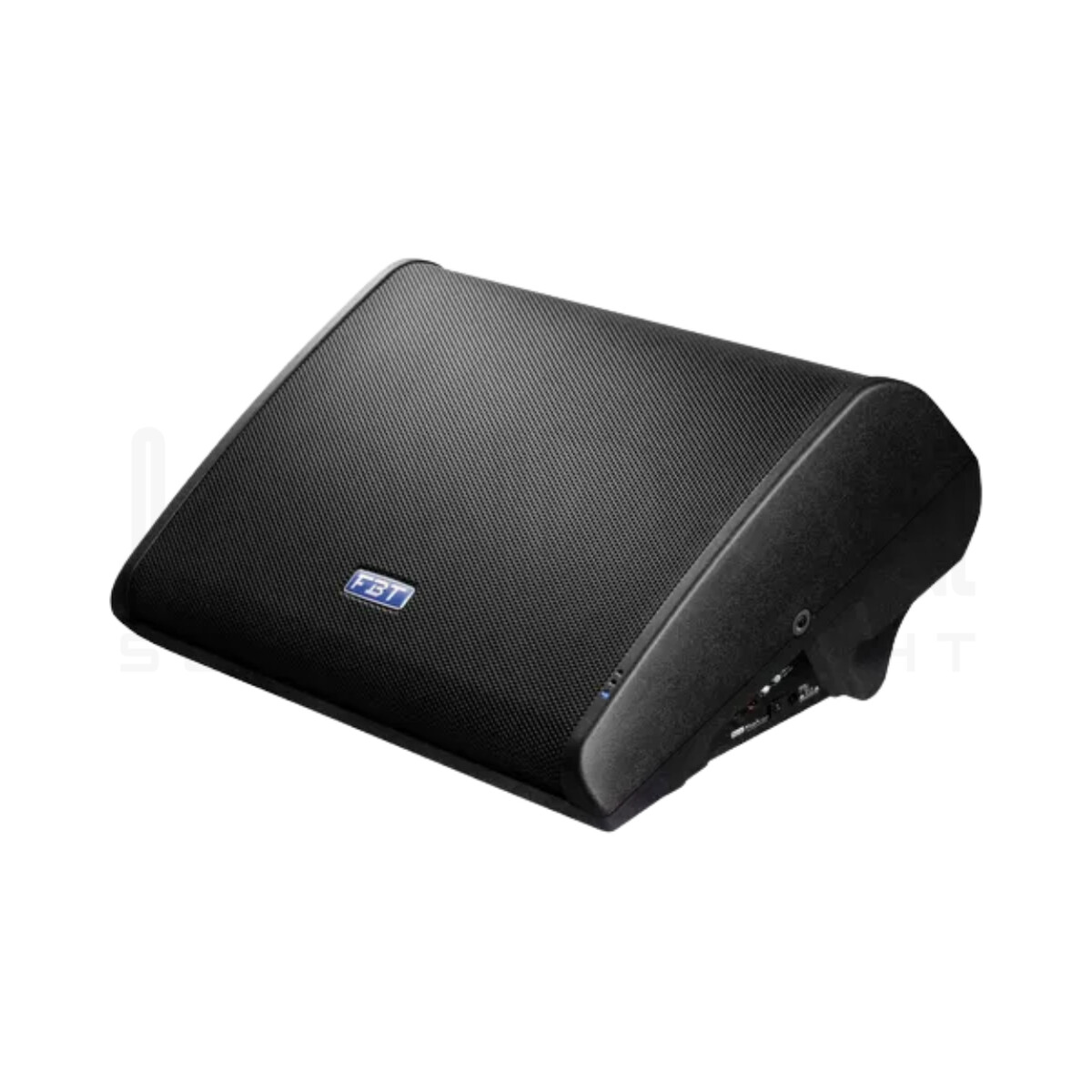

The FBT StageMaxX 12Ma is a professional 12-inch active coaxial stage monitor designed for live sound applications where high output, clarity and feedback resistance are essential. Its coaxial driver arrangement keeps the low- and high-frequency acoustic centres aligned, helping deliver consistent coverage and a focused monitor image across the stage.
The cabinet uses a custom 12-inch B&C woofer and 1-inch B&C compression driver, driven by onboard Class-D amplification and DSP. Four factory EQ presets allow the monitor to be optimised for different applications, while the enclosure can be positioned at either 35° or 55° for different listening distances.
Typical uses:
- Live band stage monitoring
- Vocal and instrument monitoring
- DJ booth monitoring
- Corporate entertainment and live performance
- Houses of worship
- Compact front-of-house or fill applications
Key features:
- Professional 2-way bi-amplified coaxial stage monitor
- 12-inch B&C woofer with 2.5-inch voice coil
- 1-inch B&C compression driver with 1.7-inch voice coil
- 400W LF + 100W HF Class-D amplification
- DSP with four factory EQ presets
- 130 dB peak SPL
- 90° conical dispersion
- 35° or 55° monitor angles
- Rugged gas-injected polypropylene enclosure
- Three integrated carrying handles
- Two M10 rigging points for compatible mounting applications
Technical specifications:
- Configuration: 2-way coaxial active monitor
- Frequency response: 60 Hz–20 kHz (-6 dB)
- Maximum SPL: 124 dB continuous / 130 dB peak
- Dispersion: 90° conical
- LF driver: 12-inch B&C, 2.5-inch voice coil
- HF driver: 1-inch B&C compression driver, 1.7-inch voice coil
- Amplifier power: 400W LF + 100W HF RMS
- Peak amplifier power: 800W LF + 200W HF
- Input impedance: 22 kΩ
- Input connection: XLR with link output
- AC power requirement: 450 VA
- Dimensions (W × H × D): 550 × 289 × 392 mm
- Net weight: 14.6 kg
What’s included:
1 × FBT StageMaxX 12Ma active stage monitor
1 × Power cable
