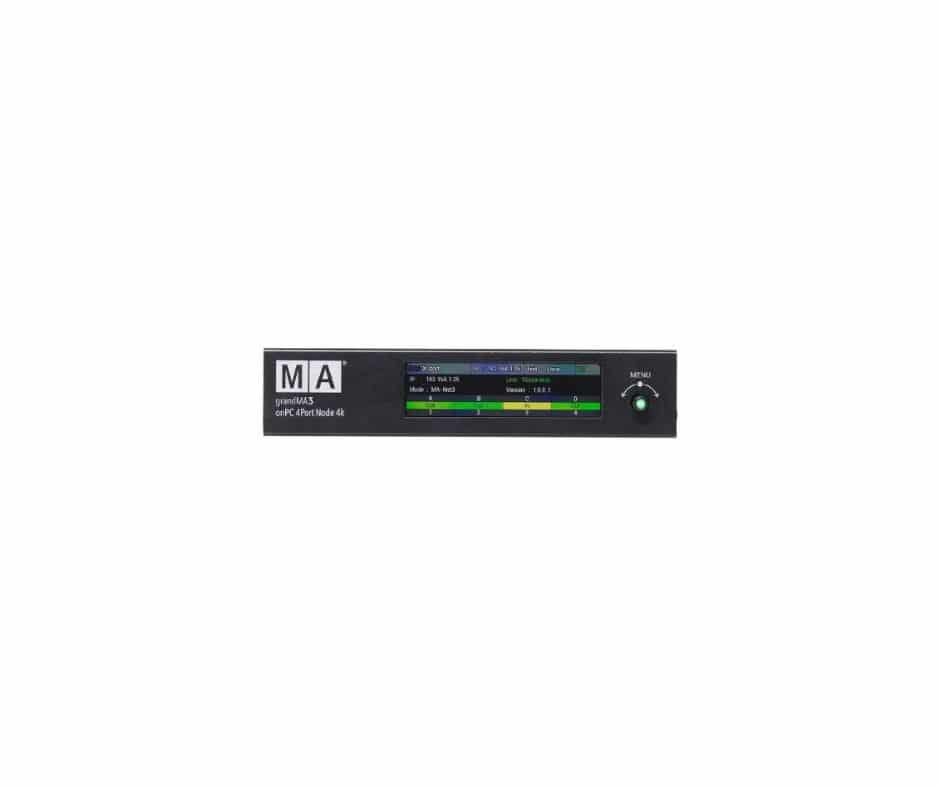

Grand MA3 OnPC 4-Port Node

What do we need to control real devices? DMX outputs! This is where the grandMA3 onPC xPort Nodes come into play. The nodes fulfill two different tasks: They convert Ethernet data to DMX and they can add parameters to your grandMA3 onPC system. So just download the grandMA3 onPC software, connect a grandMA3 onPC xPort Node and you are ready to control your fixtures!

The grandMA3 onPC 4Port Node 4k offers you four DMX outputs on the rear panel. The half-width, 1RU chassis is the perfect size for touring or permanent installations. However, you will also find a wide range of accessories for alternative mounting methods or customization. The node directly enables 4 096 parameters – the maximum for your grandMA3 onPC system!

Categories: ,
Parameters 4 096 (HTP/LTP)
Parameters Mode2 2 048 (HTP/LTP)
Operating voltage/ Supply voltage AC 100 – 240 V; 50/60 Hz
Power max. 15 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 207 x 184 x 43 mm / 9 x 8 x 2 in
(width x depth x height)
Net weight 2 kg / 5 lbs
Connectors 1 x powerCON TRUE1
1 x etherCON/RJ45
4 x DMX512-A Out (5pin XLR female)
1 x USB 2.0 (type A)
