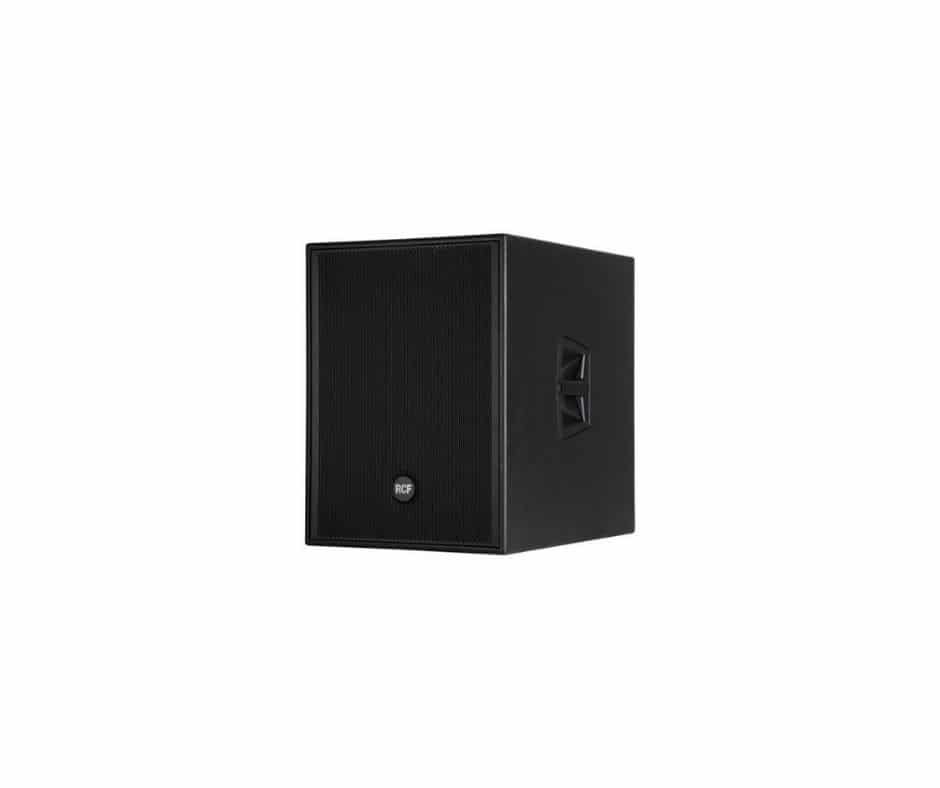

RCF 4Pro 8003-AS Subwoofer

The new 4PRO 8003-AS is one of the latest additions to the 4PRO Series. Equipped with a high power 18” woofer with a 4” voice coil, it is the perfect sub for a wide range of applications. Powered with a brand new 1000 W digital amplifier the new 4PRO 8003-AS delivers 134 dB of pure 18” punch power for portable or installed sound systems. Compact, powerful and versatile, the 4PRO 8003-AS also can be used with  ART 715-A.
Discover all product’s features.

Categories: ,
  • 2000 Watt Peak, 1000 Watt RMS digital amplifier
  • 134 dB max spl
  • 18″ ferrite magnet woofer, 4″ voice coil
  • Large port area, for reduced distortion
  • PFC power factor correction

ACOUSTICAL SPECIFICATIONS

  • Frequency Response -3 dB: 40 Hz ÷ Xover p. Hz
  • Max SPL: 134 dB
  • Woofer: 18″ ferrite magnet, 4″ voice coil

INPUT/OUTPUT SECTION

  • Input signal: bal / unbal
  • Input connectors: Stereo c. xlr-jack
  • Output connectors: Stereo xlr
  • Input sensitivity: – 2 dBu / +4 dBu

PROCESSOR SECTION

  • Crossover frequencies: 80 / 120 Hz
  • Protections: Thermal, rms
  • Limiter: Dinamic limiter
  • Controls: Volume, xover, phase

AMPLIFIER SPECIFICATIONS

  • Total power: 2000 W PEAK
  • Low frequencies: 2000 W PEAK
  • Total power: 1000 W RMS
  • Low frequencies: 1000 W RMS
  • Cooling: Convection/forced
  • Connections: Powercon in / out

CABINET

  • Cabinet Material: Baltic birch
  • Handles: 2 side
  • Pole Mount/Cap: Yes
  • Colour: Black

PHYSICAL SPECIFICATIONS

  • Height: 700 / 27.56 mm/inch
  • Width: 520 / 20.47 mm/inch
  • Depth: 700 / 27.56 mm/inch
  • Net Weight: 49 / 108.02 kg/lbs
