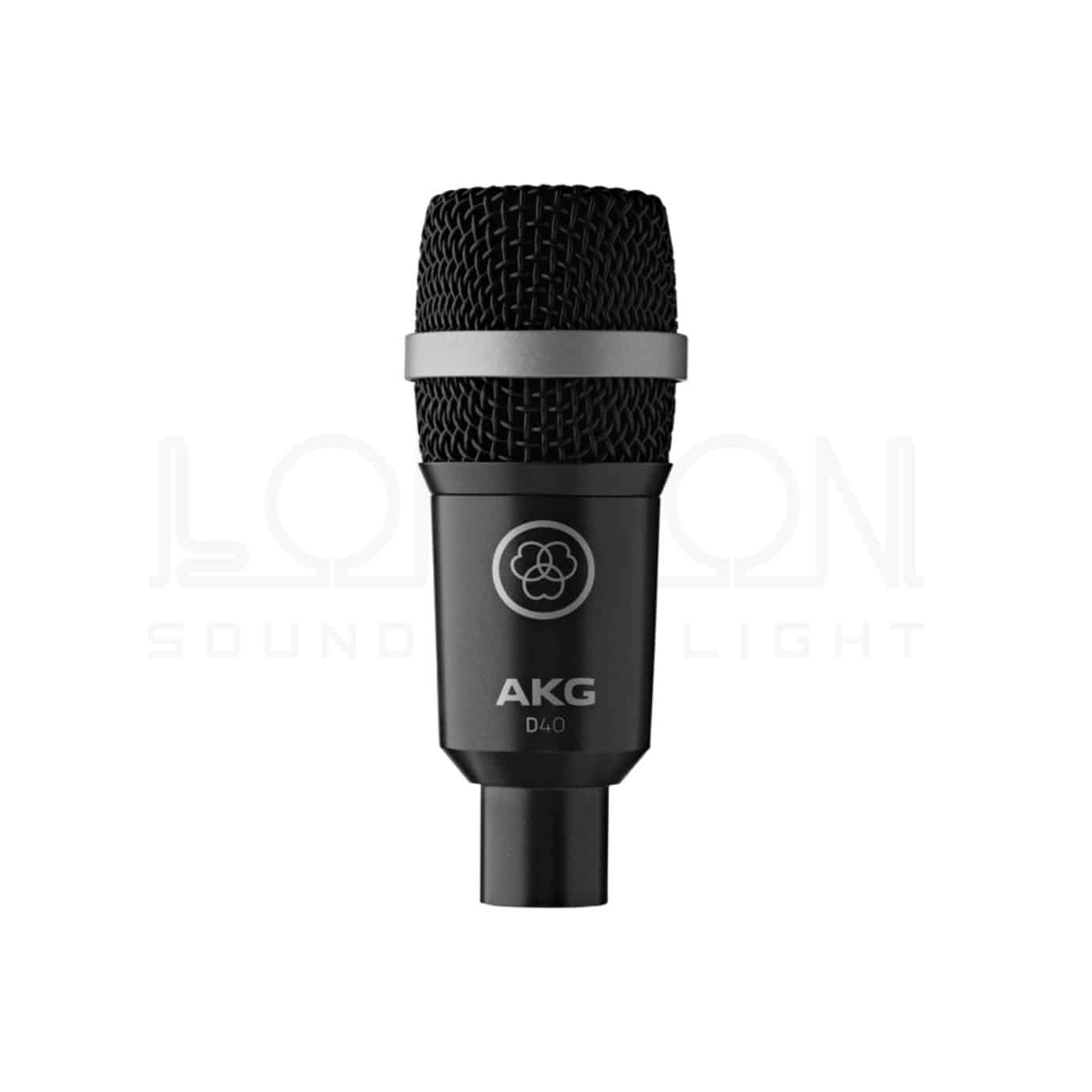

The AKG D40 is a compact professional dynamic instrument microphone built for close miking in demanding live environments. Its cardioid pickup pattern helps isolate the intended source, while its high SPL capability makes it particularly suitable for drums, percussion and amplified instruments.
The D40 uses AKG’s Varimotion diaphragm technology and a rugged all-metal body. Its integrated stand adapter and H440 mounting bracket make positioning on snare drums and toms quick and practical while keeping the stage footprint small.
Typical uses:
- Snare drum
- Rack and floor toms
- Percussion
- Guitar amplifiers
- Wind instruments
- Live bands and stage productions
Key features:
- Professional dynamic instrument microphone
- Cardioid polar pattern
- High SPL handling for drums and amplified instruments
- Varimotion diaphragm technology
- Rugged all-metal construction
- Compact format for close drum placement
- Integrated stand adapter
- Balanced XLR connection
- No phantom power required
Technical specifications:
- Microphone type: Dynamic pressure-gradient
- Polar pattern: Cardioid
- Frequency response: 50 Hz – 20 kHz
- Sensitivity: 2.5 mV/Pa (-52 dBV)
- Maximum SPL: up to 156 dB SPL
- Electrical impedance: approximately 600 ohms
- Recommended load impedance: ≥ 2000 ohms
- Connector: 3-pin balanced XLR
- Phantom power: Not required
Related equipment:
Also available as part of the AKG Drum Set Concert I Microphone Kit.
What’s included:
1 × AKG D40 microphone
1 × H440 mounting bracket
